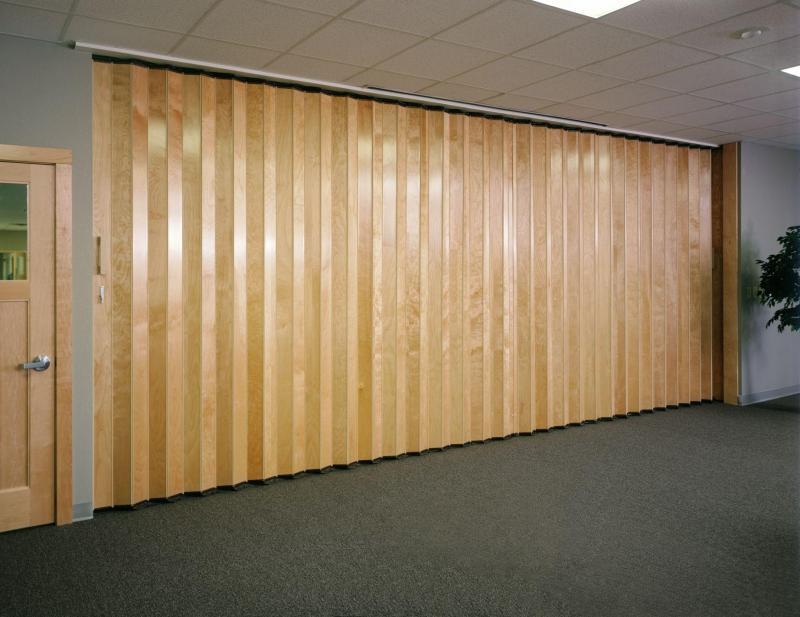

WF3300 - Deluxe Acoustical Room Divider for Churches
Woodfold's Series 3300 reduces distracting noise and helps keep the room’s temperature controlled using acoustic lining and a perimeter seal. With an exclusive heavy-duty hardware system, this dual-walled partition is as at home in religious facilities or hotel meeting spaces needing moderate sound control. Series 3300 doors are available in a variety of attractive hardwood and Vinyl-Lam finishes, and can be ordered with differing finish materials on each door face. Find the perfect one under the Decorative Options and Color & Wood Selector tabs.
Accordion door dividers are made to fit YOUR openings at no extra charge.
Any height opening up to 10' 1" (wood) or 12'1" (vinyl) x any width. (For wide openings select intermediate rolling posts)
Choose from wood laminate or vinyl lam finish
Divider hangs from track attached to ceiling
Our best level of sound reduction as the openings between the divider and track at the top and bottom utilize sweep seals to close the gaps. NOTE:Acoustical dividers do not render a room "soundproof".
Please see the tabs at bottom of page for product details
You could pay more for an acoustic room partition, but you don’t have to: Woodfold's Series 3300 reduces distracting noise and helps keep the room’s temperature controlled using acoustic lining and a perimeter seal. With an exclusive heavy-duty hardware system, this dual-walled partition is as at home in offices or religious facilities as it is in restaurants or hotel meeting spaces needing moderate sound control. Series 3300 doors are available in a variety of attractive hardwood and Vinyl-Lam finishes, and can be ordered with differing finish materials on each door face. Find the perfect one under the Decorative Options and Color & Wood Selector tabs.
To order a SERIES 3300 room divider: Measure the SHORTEST AND TALLEST height along the opening where the divider will be installed. We suggest taking several measurements across the width as floors are sometimes uneven and you don't want the divider to bind somewhere along the opening. Measure the exact width of the opening where you will be installing the divider. You will provide us with your finished opening size , unless you are going to recess the divider into the wall in which case please contact us before ordering, Select a color option. Click on each name to see a picture of that color. Choose from among different locking options. Enter the quantity of any of other options you want. Choose if you want the divider made as 1 long divider or if you want it made as a pair that will meet in the middle. When asked for the exact size of your finished opening, please enter it in the text box and be sure to designate WIDTH, Tallest Height and Shortest Height. Proceed to check out and enter the information you are asked. After you have placed your order, please allow 2- 4weeks for the factory to ship your order.
Series 3300 Product Specifications
Panels: 4¼" wide by ¼" thick; available in Vinyl-Lam and hardwood veneer faces, front and back
Panel Connectors: Flexible vinyl, color-coordinated to panel selection

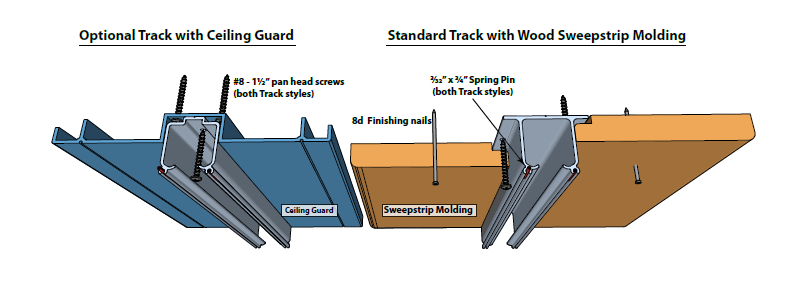

Track: 2-7/16" x 1¾" aluminum, clear finish; heavy-duty aluminum ceiling guard with separate track available
Sound Seal: Dual-wall doors with internal sound-absorbent material; flexible vinyl sweep strips mounted on top and bottom of the door; wood molding mounted on both sides of the track forming 11-5/8" wide sweep surface
Wheels: 1-1/8" nylon wheels with ball bearings on steel axle
Lead Post: 2-7/8" x 4½" heavy-duty aluminum, color-coordinated to panel connectors
Jamb Molding: 2-1/8" wide by 15/16" deep aluminum
Handle: Molded PVC with finger recess
Latch: Deadlatch with thumbturn on two sides; keylock option available
Width: Custom crafted to any width; intermediate rolling posts required on sections exceeding 15'
Height: Vinyl-Lam up to 12'1"; hardwoods up to 10'1"
Stacking Space: 2" per foot, plus 4½" for lead post
WEIGHT: 8ft height is 26 lbs per lin ft. 10ft height is 32 lbs per lineal foot. 12ft height is 38 lbs per lineal foot.
*Field Sound Transmission Class: The dual-walled Series 3300 Acoustic Partition has a field sound transmission class rating (FSTC) of 33. Field tests were performed by Bruck, Richards & Chaudiere, Inc. of Seattle, Washington following the procedures specified in ASTM designation E 336-90.
Shop Drawings
To order a SERIES 3300 room divider: Measure the SHORTEST AND TALLEST height along the opening where the divider will be installed. We suggest taking several measurements across the width as floors are sometimes uneven and you don't want the divider to bind somewhere along the opening. Measure the exact width of the opening where you will be installing the divider. You will provide us with your finished opening size , unless you are going to recess the divider into the wall in which case please contact us before ordering, Select a color option. Click on each name to see a picture of that color. Choose from among different locking options. Enter the quantity of any of other options you want. Choose if you want the divider made as 1 long divider or if you want it made as a pair that will meet in the middle. When asked for the exact size of your finished opening, please enter it in the text box and be sure to designate WIDTH, Tallest Height and Shortest Height. Proceed to check out and enter the information you are asked. After you have placed your order, please allow 2- 4weeks for the factory to ship your order.
Series 3300 Product Specifications
Panels: 4¼" wide by ¼" thick; available in Vinyl-Lam and hardwood veneer faces, front and back
Panel Connectors: Flexible vinyl, color-coordinated to panel selection
Track: 2-7/16" x 1¾" aluminum, clear finish; heavy-duty aluminum ceiling guard with separate track available
Sound Seal: Dual-wall doors with internal sound-absorbent material; flexible vinyl sweep strips mounted on top and bottom of the door; wood molding mounted on both sides of the track forming 11-5/8" wide sweep surface
Wheels: 1-1/8" nylon wheels with ball bearings on steel axle
Lead Post: 2-7/8" x 4½" heavy-duty aluminum, color-coordinated to panel connectors
Jamb Molding: 2-1/8" wide by 15/16" deep aluminum
Handle: Molded PVC with finger recess
Latch: Deadlatch with thumbturn on two sides; keylock option available
Width: Custom crafted to any width; intermediate rolling posts required on sections exceeding 15'
Height: Vinyl-Lam up to 12'1"; hardwoods up to 10'1"
Stacking Space: 2" per foot, plus 4½" for lead post
WEIGHT: 8ft height is 26 lbs per lin ft. 10ft height is 32 lbs per lineal foot. 12ft height is 38 lbs per lineal foot.
*Field Sound Transmission Class: The dual-walled Series 3300 Acoustic Partition has a field sound transmission class rating (FSTC) of 33. Field tests were performed by Bruck, Richards & Chaudiere, Inc. of Seattle, Washington following the procedures specified in ASTM designation E 336-90.
How to Order Church Room Dividers
Dividers are sold by the lineal foot. So if room is 20ft wide you have 20 lin feet. Put “20” in the correct pricing box and it gives you the price at bottom of page
There are 3 pricing boxes based on ceiling height
Box 1- Height up to 8’1
Box 2-Height 8’1-10’1
Box 3-Height 10’1 to 12ft
Dividers can be made as a single door or as a pair (i.e. 2ea 10ft sections to make up a 20ft opening. )
We think the Thumb latch is better for churches than the keylock as you don’t have to worry about a lost key
We carry 4 types of dividers
The WF240 is the basic church room divider…there is a gap at the top where it hangs from track of about 3/8” + a ½” gap at bottom to allow for uneven floors. Due to the gap there is minimal sound reduction with the series 240. (imagine your opening covered with a 5/16" sheet of plywood but with gaps at the top and bottom)
WF 2100 is the entry level sound reduction divider (not sound proof) ...you can still hear talking but the noise level is reduced. Vinyl seals at top and bottom help reduce sound and airflow. (imagine your opening covered with a 5/16" sheet of plywood with vinyl seals to cover the gaps at the top and bottom)
WF 3300 is a double walled unit so it provides more sound reduction than the 2100 series but is still not sound proof. Vinyl seals at top and bottom help reduce sound and airflow.(imagine your opening covered with 2 sheets of 5/16" sheet of plywood with a half-inch air gap between the sheets and vinyl seals to cover the gaps at the top and bottom)
WF4100 is a double walled unit with extra sound dampening material in between the panels. Vinyl seals at top and bottom help reduce sound and airflow.(imagine your opening covered with 2 sheets of 5/16" sheet of plywood with a half-inch air gap plus heavy, sound dampening material between the sheets and vinyl seals to cover the gaps at the top and bottom). The WF4100 is close in sound reduction to a regular drywall interior wall.
All track and mounting hardware is included with the dividers.
Room dividers feature Free Shipping to the church.
We do not provide installation or recommend installers but installation of room dividers is not difficult. Provided you have adequate ceiling structure (the track must screw into ceiling joists) most dividers can be installed using competent volunteer labor on a Saturday.
