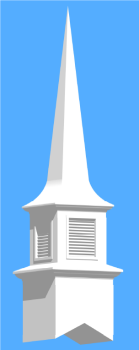

Church Steeples 16-20ft

Church Steeples 16-20ft

Quality fiberglass church steeples for every size and budget.

Standard steeple sizes make ordering easy and economical.

Steeple options include:

ball & cross, Krinklglass panels, interior lighting,
false louvers, real louvers for bells & chimes,
lightening protection, cross & symbol cutouts, interior lighting.

Factory Installation and delivery available for many areas.

All full steeples feature 120mph wind loads (optional 150+ wind load available.)

  • Fiberglass Church Steeple from American Steeples
  • Please see picture for dimensions and detail
  • American has been building quality church steeples for over 30 years
  • We have a size and style of church steeple for every church
  • Standard steeple color is white (other colors available for upcharge)
  • Available Steeples Options: (available for upcharge)
    • Krinklglass (plain or with design) windows shown are as an example and are not from this particular steeple model.
    • Fiberglass Ball and/or Cross for Spire
    • Metal Spire Cross
    • Lightening protection (grounding must be done by a certified local electrician)
    • Interior Lighting
    • Bell or chimes
    • Engineered Wind Load Drawings
    • Extra Wind Bracing for 120MPH+
    • Installation (Factory Installation not available in Florida- independant contractor list available)
  • Weight aprox 200 lbs
$1,800.00
Fiberglass Church Steeple Height 18 Foot with Square Top False louvres (Vented louvres or Krinklglas Windows available-inquire)

STANDARD STEEPLE SPECIFICATIONS

  • Anchoring members are all steel
  • We use low emission Environmentally friendly gel coats
  • Easy installation with simple bolt-together connection
  • Polyester wall is Fiberglass reinforced with a flexural strength up to 29,000 psi
  • Certified to withstand wind speeds up to 120 mph
  • Weather-resistant seal with collar-to-collar fit and overhanging lip
  • Features false louvres with access panel
$4,015.00
$4,617.00
Fiberglass Church Steeple Height 19 Foot

STANDARD STEEPLE SPECIFICATIONS

  • Anchoring members are all steel
  • We use low emission Environmentally friendly gel coats
  • Easy installation with simple bolt-together connection
  • Polyester wall is Fiberglass reinforced with a flexural strength up to 29,000 psi
  • Certified to withstand wind speeds up to 120 mph
  • Weather-resistant seal with collar-to-collar fit and overhanging lip
$2,540.00
$2,921.00
Fiberglass Church Steeple Height 19 Foot

STANDARD STEEPLE SPECIFICATIONS

  • Molded Fiberglass steeple laminated and reinforced for strength
  • Light weight fiberglass steeple typically does not require extra reinforcing
  • Anchor plates molded in and pre-cut to match your roof pitch
  • Porcelain-like exterior finish is fully weatherproof and not affected by temperature extremes
  • Easy installation
  • Standard color is White. Other colors quoted on request.
  • Optional Items: Ball and Cross, Shingle Saver, Lightening Protection.
  • Krinklglass panels can be added in place of louvres
  • Delivery and/or Installation are not included in price.
  • Allow 4-6 weeks for most orders to deliver.
$3,504.15
  • Click Photo for steeple dimensions and different configurations (if available)
  • Standard in white-custom colors available
  • High grade timber and woven fiberglass roving makes up the structural suports
  • Fiberglass steeple is engineered to 120 mph wind loads (120+mph available)
  • Low maintenance, top-quality gel coat never needs painting
  • Two to six week delivery - Factory Steeple Installation available
  • See additional descriptions & specifications for more information and available options
$3,240.00
Fiberglass Church Steeple Height 19 Foot

STANDARD STEEPLE SPECIFICATIONS

  • Molded Fiberglass steeple laminated and reinforced for strength
  • Light weight fiberglass steeple typically does not require extra reinforcing
  • Anchor plates molded in and pre-cut to match your roof pitch
  • Porcelain-like exterior finish is fully weatherproof and not affected by temperature extremes
  • Easy installation
  • Standard color is White. Other colors quoted on request.
  • Optional Items: Ball and Cross, Shingle Saver, Lightening Protection.
  • Krinklglass panels can be added in place of louvres
  • Delivery and/or Installation are not included in price.
  • Allow 4-6 weeks for most orders to deliver.
$5,206.50
Fiberglass Church Steeple Height 19FT Weight 200lbs

STANDARD STEEPLE SPECIFICATIONS

  • Molded Fiberglass steeple laminated and reinforced for strength
  • Light weight fiberglass steeple typically does not require extra reinforcing
  • Anchor plates molded in and pre-cut to match your roof pitch
  • Porcelain-like exterior finish is fully weatherproof and not affected by temperature extremes
  • Easy installation
  • Standard color is White. Other colors quoted on request.
  • Optional Items: Ball and Cross, Shingle Saver, Lightening Protection.
  • Krinklglass panels can be added in place of louvres
  • Delivery and/or Installation are not included in price.
  • Allow 4-6 weeks for most orders to deliver.
$2,047.50
  • Click Photo for steeple dimensions and different configurations (if available)
  • Standard in white-custom colors available
  • High grade timber and woven fiberglass roving makes up the structural suports
  • Fiberglass steeple is engineered to 120 mph wind loads (120+mph available)
  • Low maintenance, top-quality gel coat never needs painting
  • Two to six week delivery - Factory Steeple Installation available in Southeast states (not in FL)
  • See additional descriptions & specifications for more information and available options
  • Weight is 275 lbs
  • Max roof pitch is 6/12 with the front louvres
$2,052.00
  • Click Photo for spire dimensions and different configurations (if available)
  • Standard in white-custom colors available
  • High grade timber and woven fiberglass roving makes up the structural suports
  • Fiberglass spire is engineered to 120 mph wind loads (120+mph available)
  • Low maintenance, top-quality gel coat never needs painting
  • Two to six week delivery - Factory Installation available
  • See additional descriptions & specifications for more information and available options
$2,268.00
  • Click Photo for cupola dimensions and different configurations (if available)
  • Standard in white. Custom colors available at upcharge.
  • High grade timber and woven fiberglass roving make up the structural suports
  • Fiberglass cupola is engineered to 120 mph wind loads (120+mph available)
  • Low maintenance, top-quality gel coat finish never needs painting
  • Four to eight week delivery
  • Factory Installation available in select areas.
  • See additional descriptions & specifications for more information and available options
$2,862.00
  • Click Photo for cupola dimensions and different configurations (if available)
  • Standard in white-custom colors available
  • High grade timber and woven fiberglass roving makes up the structural suports
  • Fiberglass cupola is engineered to 120 mph wind loads (120+mph available)
  • Low maintenance, top-quality gel coat never needs painting
  • Two to six week delivery - Factory Installation available
  • See additional descriptions & specifications for more information and available options
$2,862.00
  • Click Photo for spire dimensions and different configurations (if available)
  • Standard in white-custom colors available
  • High grade timber and woven fiberglass roving makes up the structural suports
  • Fiberglass spire is engineered to 120 mph wind loads (120+mph available)
  • Low maintenance, top-quality gel coat never needs painting
  • Two to six week delivery - Factory Installation available
  • See additional descriptions & specifications for more information and available options
$1,944.00
How do we choose the right steeple for our church?
  • The first step is to determine the height of your church's roof from the ridge line (where the steeple will sit) to the ground. Use this number as a guide and look at steeple models whose height are within a few feet of your roof height.
  • Next, consider the style and design elements you want in a steeple. If cost is your primary concern, then staying with steeple models that don't have a lot of different elements to them will keep your costs lower without sacrificing quality. Steeples with cupolas, louvers, windows and other design elements add to the beauty of a steeple, but also add to the cost. I generally recommend that if you have a simple church design, try to stay with a simple steeple. If your church is larger and more elaborate, then try to pick a unit that visually matches the building.
  • Please provide us the following when actually placing your order: roofing material (if metal roof-provide height of the standing seams) roof type (gable, hip, etc. and number of ridges) roof slope. See below for more information on determing roof slope and type.


Steeple Installation

For steeples that begin with the prefix ASB see the below documents for installation and mounting details.






ASB steeples are constructed with 18-22 mils of polyester gel-coat that has a UV stabilizer added to reduce deterioration from UV rays. The fiberglass is put on in three different layers, using the chopped strand method. Approximately 1/16” of fiberglass is added in each layer. Once the third and final layer, wood and cardboard bracing is glassed into the stress points of the steeple. After the steeple halves are made from the mold, the steeple is sandwiched together with three (3) additional layers of 1 ½ oz. mat, which creates a solid 3/8” to 7/16” flange which is trimmed and gel-coated to match the steeple. After the steeple is put together the remaining braces and wind bracing are installed.


Wind Loading: Different areas of the country have different wind loading requirements. Coastal areas usually have requirements that steeples meet 155mph+ wind loading requirements. It is the churches responsibility to determine the local requirements. Our standard steeples meet 120mph wind loading so if you require 155+ please email us before ordering for a quote to make your steeple meet 155+ requirements (this usually involves engineering reports and additional bracking). Our STEEPLE IN A BOX steeples are designed to meet 90mph wind loading and are not suitable for coastal areas.
